System AWS 90.SI+
The Schüco AWS 90.SI + (Super Insulation +) aluminum window is the first aluminum window system that realize the requirements of passive construction. When using a triple-glazed unit with a coefficient of Ug = 0.5 W / m2K and spacer bars, the entire window achieves the passive standard of Uw = 0.77 W / m2K.

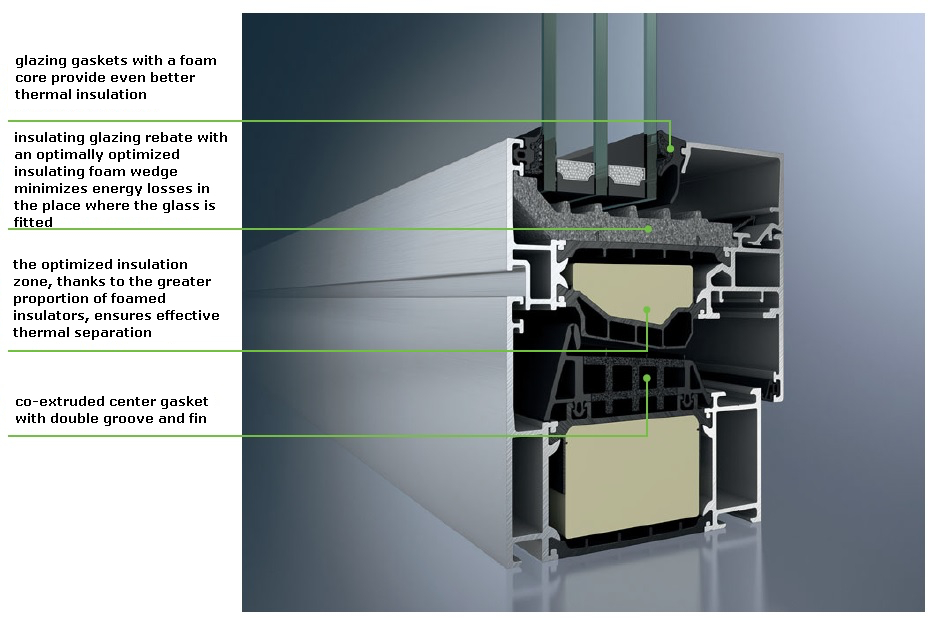

Excellent parameters with a small outer width of 117 mm were achieved according to the innovative solution of the middle sealing and optimization of the isolation zone with foam spacers.
The system equipped with Winkhaus fittings allows for the production of leaves weighing up to 150 kg. Possibility to install solutions that realize the criteria of anti-burglary protection in the RC2 class.
Windows are available in a wide range of RAL colors, anodized, wood-like and structural varnishes.
Installation depth 90 mm
Number of chambers 3
Glazing package Ug=0,5
Permeation coefficient Uw=0,77*
Hidden fittings Schüco
*for the reference window 1230x1480 mm
Equipment options:
As an option you can select windows with hidden vent AWS 90BS.SI.
